| Tên thương hiệu: | XWELL |
| Số mô hình: | MD-ADW |
| Số lượng đặt hàng tối thiểu: | 1 CÁI |
| giá bán: | USD 11000 - 15000 / pcs |
| Chi tiết đóng gói: | hộp gỗ |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây, L/C |

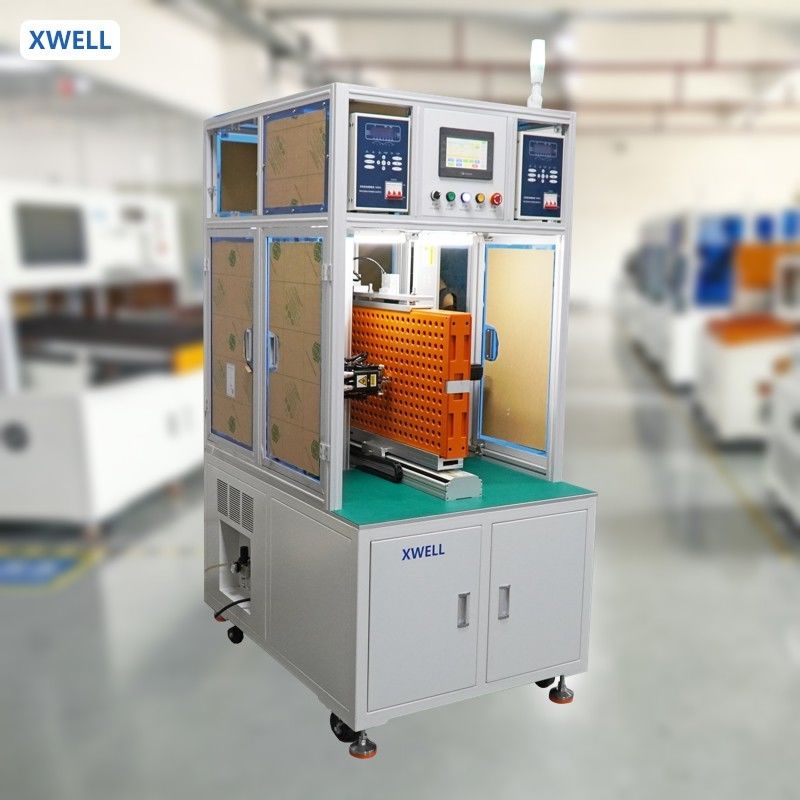

18650 battery pack Double-Sided Battery Spot Welding Equipment
This Industrial Double-Sided Battery Spot Welding Equipment utilizes a servo-driven welding system to deliver precise pressure control and stable welding performance. It is ideal for manufacturers seeking higher automation and production efficiency.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
