| Tên thương hiệu: | XWELL |
| Số mô hình: | MD-ADW |
| Số lượng đặt hàng tối thiểu: | 1 cái |
| giá bán: | USD 11000 - 15000 / pcs |
| Chi tiết đóng gói: | HỘP GỖ |
| Điều khoản thanh toán: | T/T, Western Union, L/C |

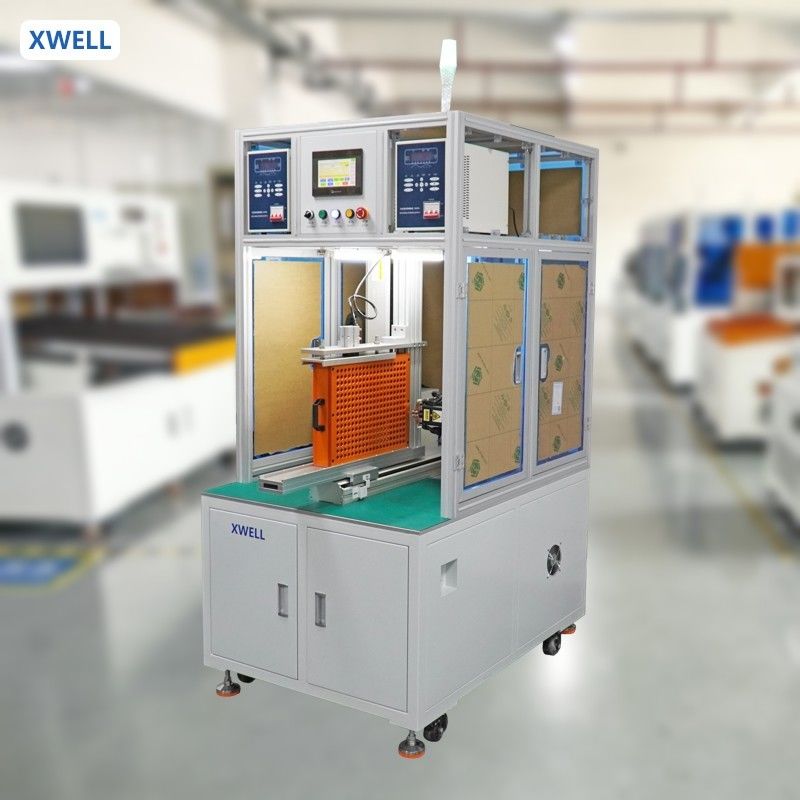

Double Side Spot Welding Resistance Spot Welding Machine
Feature:
1) Most Durable Spot Welding Machine
2) Most Energy Saving CNC Welding Machine
3) Most easy operative Spot Welding Machine. Our welding machines are all well bested in good condition before delivery. Once the clients receive our machines, just need connect air pressure and electronic wire, cooling water, it is ok to run.
4) Fastest Welding Machine. Capacity is important to factory. To use less labour, and more productive, our welding machines can reach your goal.
5)Our company has excellent development and design and production team, more than 70% of the products for non-standard custom, welcome to sample custom equipment.
Product Advantages
1. Manual programming, CAD map, easy to learn, production line workers can be fully competent.
2. Production counting function, set the production quantity, and automatically stop when the output is completed.
3. Welding needle compensation function, set the number of welding needles, and automatically remind the welding needle maintenance when the number is reached
4. Aluminum alloy frame, imported acrylic guard plate, beautiful and elegant, strong sense of technology, visual operation to improve production safety factor.
Product Specification
|
Product Name: lithium battery double-sided rotation 6-axis automatic spot welding machine
|
|
|
Brand name: XWELL
|
Input voltage: 220V±10% 50Hz
|
|
Model number: MD-ADW
|
Welding voltage: 220V/380V(Optional)
|
|
Power source: Optional
|
Efficiency:3800pcs/h
|
|
Thickness of welding nickel sheet: 0.08mm-0.25mm
|
Drive form: Pure motor drive
|
|
Scope of application: Various cylindrical lithium batteries
|
Machining accuracy: 0.01ms
|
|
Welding method: Plane double needle welding
|
Welding speed:0.7-0.8ms/piece
|
|
Cooling method of welding needle:circulating water cooling
|
|
|
Number of file groups that can be saved: unlimited
|
|
|
Overall dimensions: 1100L*900W*1130Hmm
|
|
|
Shaft stroke: Y-axis:500mm,Z-axis:350mm (customizable)
|
|
Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack)."
