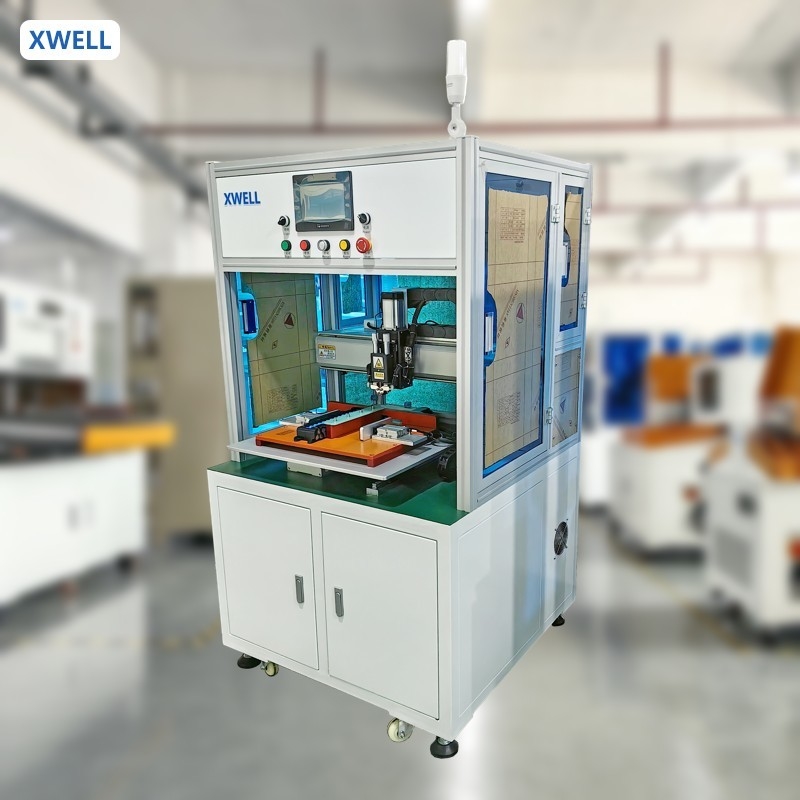

8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | XWELL |
| Chứng nhận: | CE |
| Số mô hình: | MD-ADW |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 CÁI |
|---|---|
| Giá bán: | USD 11000 - 15000 / pcs |
| chi tiết đóng gói: | Hộp gỗ |
| Thời gian giao hàng: | 10-15 ngày |
| Điều khoản thanh toán: | T/T, Western Union, L/C |
| Khả năng cung cấp: | 100pc mỗi tháng |
|
Thông tin chi tiết |
|||
| các loại pin: | tế bào hình trụ | đầu số: | 2 PC |
|---|---|---|---|
| vận hành hệ thống: | hệ thống nhúng | Giao diện người dùng: | Màn hình cảm ứng |
| Nguồn điện: | 5000A / 8000A / 10000A tùy chọn | Hiệu quả: | 3800pcs/h |
| Đột quỵ thiết bị: | 500*350 (mm) khoảng 760 18650 ô | Công suất tải tối đa: | 200-400 chiếc (pin lithium 18650 tiêu chuẩn) |
| Hệ điều hành: | hệ thống nhúng + màn hình người - máy | Chế độ truyền: | bước + đai + ray dẫn hướng tuyến tính chính xác nhập khẩu (servo + vít tùy chọn) |
| Làm nổi bật: | 8000A transistor spot welder,single-sided battery spot welding machine,PC-controlled lithium spot welder |
||
Mô tả sản phẩm
8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Products Description
MD-ADW is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700/33140 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features
- Support breakpoint start, automatic start, and manual start.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
- Can be matched with the production line of lithium battery group.
- Can store dozens process of different battery packs product, switching products without re-setting parameters.
- Can match a variety brand of spot welders.
Product Specification
SPECIFICATIONS FOR MD-ASW AND MD-ADW | |||
| MD-ASW | MD-ADW | ||
Welding Head Number | 1 | 2 | |
Travel | X: 400mm; Y: 400mm | Y: 500mm; Z: 350mm | |
Welding Spped | 0.5s/spot, 2000-2500pcs/h | 0.5s/spot, 3500-4000pcs/h | |
Welder Power Suppler | 5000A Inverter Spot Welder | ||
Max Motor Speed | 1000mm/s | ||
Max Battery Number | 450 pcs (18650) | ||
Operate System | Embedded system | ||
User Interface | Touch screen | ||
Drive Mode | Step motor and precision guide rail | ||
Power Supply | 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder) | ||
Air Pressure | 0.3-0.6 MPa | ||
Machine Size | 900L*900W*1750Hmm | 1100L*900W*1930Hmm | |
Machine Weight | 200kg | 350kg | |
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
